Basic Info.
Model NO.
zlp800
Certification
TUV, ISO, CE
Condition
New
Rated load
630KG
Power Source
Electric
Material
Galvanized Steel
Type
Standard Suspended Platform
Color
Customized
Provided
Installation Video Easy for Use
Length
Customized
Lifting Height
100 M
Transport Package
Standard
Trademark
Watsond
Origin
Wuxi, Jiangsu
HS Code
84289090
Production Capacity
200000 Sets/Year
Product Description

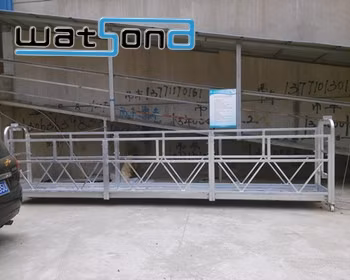

ZLP800 Suspended Platform Details
Working Platform(the workplace at heights for the workers)
1) Q235 steel+ customised painting
2) Q235 steel+ Hot-dipped Galvanised
3) Aluminum Aloy +customised painting
2.Length of platform: 6m(2m+2m+2m)or(1.5m+2m+2.5m)
It can be customised from 1.0m,1.5m, 2m, 2.5 meter or 3m etc
3.With 4pcs of Bottom Wheels fitted underneath, the platform is easy to move. 4.Optional 2pcs of Wall Roller around the Working Platform to ptotect the surface of building.
Suspension Mechanism
Suspension mechanism is on the top of the building to suspend the platforms through the steel rope1. Surface with Painting or Hot-dipped Galvanized
| ZLP630 ZLP800 Suspended Platform Parameter | ||||||
| Description | ||||||
| Model | ZLP630 | ZLP800 | ||||
| Rated load | 630 Kg | 800 Kg | ||||
| Lifting speed | 9.3+0.5 m/min | 8.0+0.5 m/min | ||||
| Lifting Height | 100 m | 100 m | ||||
| Working Platform | Working Cage | 1 Sets | Dimension L×W×H(m) | 6m(2+2+2)×0.69×1.42m | 7.5m(2+2+2+1.5)×0.69×1.45m | |
| Material | Q235 Steel or Aluminum Alloy | Q235 Steel or Aluminum Alloy | ||||
| Surface | Painting or HDG | Painting or HDG | ||||
| Bottom Wheels | 4 pcs | 4 pcs | ||||
| Wall Roller | 2 pcs | 2 pcs | ||||
| Hoist | 2 Sets | Model | LTD6.3 | LTD8.0 | ||
| Lifting Speed | 9.3±0.5 m/min | 9.3±0.5 m/min | ||||
| Pulling power | 6.3KN | 8.0KN | ||||
| Quantity | 2 sets | 2 sets | ||||
| Electric Motor | Power | 1.5 kw*2 | 1.8 kw*2 | |||
| Voltage | 380v/50Hz or 220V/60HZ | 380V/50Hzor220V/60HZ | ||||
| Rotational speed | 1420 rpm | 1420 rpm | ||||
| Braking Torque | 15N.m | 15N.m | ||||
| Safety Lock | 2 Sets | Model | LSG20 | LSG30 | ||
| Quantity | 2 sets | 2 sets | ||||
| Locking Rope Angle | 3°~8° | 3°~8° | ||||
| Allow impulsive force | 20 KN | 20 KN | ||||
| Steel Wire Diameter | 8.3 mm | 8.6 mm | ||||
| Electric Cabinet | 1 Sets | Component Brand | CHNT | CHNT | ||
| Surface | Galvanized | Galvanized | ||||
| Suspension Mechanism | 2 Sets | Front beam overhanging | 1.3~1.6 m | 1.3~1.6 m | ||
| Beam adjustable height | 1.06~1.66 m | 1.06~1.66 m | ||||
| Surface | Painting or HDG | Painting or HDG | ||||
| Electric Cable | l pcs-100 m | 3x2.0+2x1.0YC-5 | 3x2.5+2x1.5YC-5 | |||
| Steel Wire Rope | 4x31SW+FC | D-8.3 m | D-8.6 mm | |||
| 100 m/ pcs 4 pcs | 100 m/ pcs4 pcs | |||||
| Safety Rope | 1 pcs(Forced Nylon) | 100 m | 100 m | |||
| Heavy Hammer | 2 pcs | 4 pcs | 4 pcs | |||
| Travel Limit Disc | 2 pcs | 2 pes | 2 pes | |||
| Load Quantity of 20" Container | 13 sets | 13 sets | ||||
Our company--China Watsond
♥a professional manufacturer of BMU, suspended platform and aerial work equipment, integrating design, manufacturing, construction, installation and after-sales♥have R&D center, manufacturing center and testing center
♥win wide praise both at home and abroad through long-term unremitting efforts
♥to serve our clients so that they can do their jobs in a safe, efficient and beneficial way
Plan drawing cooperation:
Make the best plan according to customers' requirements
Product design:
using 3D software design, finite element analysis, to ensure the product safety and rationality.
Manufacturing:
Implement a quality management system conforming to international standards in manufacturing and product quality management,with the CE/TUV/ISO9001 quality management system certification.
After-sales service:
provide 24-hour emergency maintenance service
Q :Are you factory or trade company?
A:We are a professional manufacturer of BMU, Suspended platform and aerial work equipment, integrating design, manufacturing, construction, installation and after-sales.
Q: What quality guarantee for your products?
A:We have passed the ISO 9001,CE,TUV certificates. We have own QC to check mass productions in the factory before each of shipment.
Q:What about the Price?
A:Please send us inquiry, A consideration solution or preferable quotation will be sent within 24 hours
Q:Payment term
A: T/T or L/C at sight.
Q:Can you produce with our logo?
A: We can provide OEM service to make your logo on the product.
