Product Description
| Model | ZLBS-600CNC/5A | ZLBS-600CNC/5+1A | Unit |
| Worktable size | L3500*W2000 | L3500*W2000 | mm |
| Maximum Processing | L3500*W2000*H500 | L3500*W2000*H500 | mm |
| X.Y. Z-axis Transmission | X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer. | X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer. | |
| C-axis | Head rotate 0°-360°, with Robot Reducer | Head rotate 0°-360°, with Robot Reducer | |
| A-axis | Head tilt 0°-90° with Robot Reducer | Head tilt 0°-90° with Robot Reducer | |
| Camera brand | Hikvison | Hikvison | |
| Blade diameter | 350-600mm | 350-600mm | mm |
| Main motor | self-developed 5-axis special motor 22KW(permanet magnet motor with frequency) | self-developed 5-axis special motor 22KW(permanet magnet motor with frequency) | |
| Control center | Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy | Options: 1.Self-developed CNC system for 5 Axis Bridge Saw Machine 2.ESA System from Italy | |
| Driving motor | 1.5kw Servo motor YUHAI Or ESA | 1.5kw Servo motor YUHAI Or ESA | |
| Main motor RPM | 6000 | 6000 | RPM |
| Main Spindle type | Can be put a drill | Can be put a drill | |
| Electric Spindle for Milling Work (Optional) | Without | * Type: electric spindle * Rotating speed: 0-24000 rpm * Power: 5.5kw | |
| Total power | 30kw | 35kw | kw |
| worktable flip | 85° | 85° | |
| Water consumption | 2 | 2 | m³/h |
| Total weight | 6 | 6 | t |
Tombstone CNC Machine for Cutting Engraving Polishing Profiling
It is a CNC Stone Machinery with ZLBS-600CNC/5A+1 5+1-axis smart cutters are available for processing marble granite headstone/tombstone. It can be used quickly and easily due to its excellent precision and efficiency. After taking a photo and transferring the design sketch to the stone, the machine will begin operating on its own.

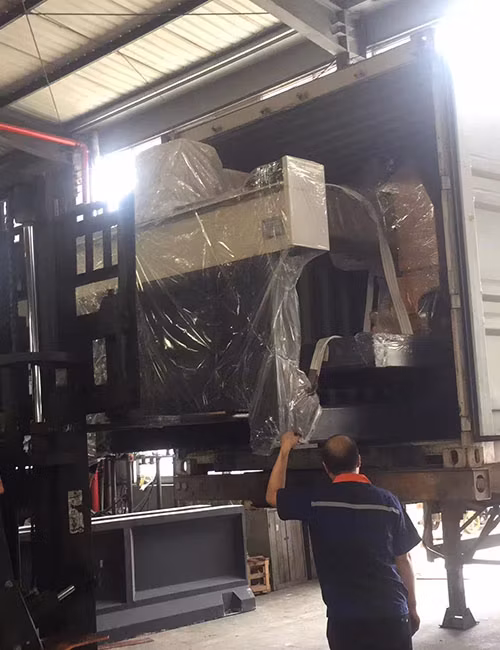

The primary component of the machine type ZLBS-600CNC/5+1A can be stored in a high-cube container.
We provide OEM/ODM service.
The machine is a heavy-duty conjoined structure; it is strong, takes up less space, and is easy to install and move.
2. Head tilt 0°-90°, Head rotate 0°-360°
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm
3. CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
4. 17" Color Touch-Screen
With an Industrial Computer and a 17" Color Touch-Screen
5. A Camera to Locate the Position:
Use a camera to locate the position of the plate and display it in the cutting procedure.
6. 22-KW permanent magnet motor
A 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
7. Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
8. Worktable Turnover 85°
The worktable can be fliped up to 85° automatically, easy for slabs loading
9. Option: ESA System from Italy
10. Option: front sliding door
11. Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plate and rubber
Tombstone Production
1. Cutting Curves
The Maximum running distance of Z-axis is 50cm, and the machine can cut stones in curved shapes with Maximum17cm thickness.
2. Wave Profiling
This Machine can do wave profiling at both X-axis and Y-axis. It can profile small curves for Memorial Headstones, which makes your design possible.
3. High-Efficiency Solution
You can put many pieces of Stones next to each other and do Wave Profiling together. The maximum Quantity can be customized up to 20~30pieces(for 10cm Tombstones).
4. Product Show
This machine can produce Tombstones in high precision according to drawings.
And We also can add a milling cutter on the machine to do engraving work.
