Product Description
UHMWPE material can be classed as a specialty engineering plastic. It is an indispensable product in world markets having an incomparable combination of abrasion resistance, surface lubricity and impact strength, combined with the excellent chemical properties of HDPE. It competes primarily with Polyacetal, Nylon, PTFE and, in fiber form, with Polyaramid, but it also has many markets that are uniquely its own.We have produced UHMWPE sheet and HDPE for more than 30 years and we have ourselves factory and company. We produce kinds of UHMWPE and HDPE sheet for industrial community and civil use .UHMW PE is the strongest and toughest of all polyethylene grades for marine applications - even outlasting steel as a facing material, and many times better than timber facings. UHMW PE does not decay or rot, and is unaffected by marine borers. It is grain-free so will not splinter or crush, and can be cut, drilled and machined with ease. Most UHMW PE is supplied as Black - not just because this is the most economic choice, but also because black is manufactured using a double sintering process which work hardens the UHMW PE to further increase its abrasion resistance
UHMW PE is available in many other colors yellow, white, blue, green, red, grey or orange which can be used to make the fender system highly visible in poor weather or to demarcate zones along a berth. UHMW PE also comes in many thicknesses per project requirements and also can be provided in a re-processed grade for a more economical solution.
UHMW PE can also be supplied in stand-alone applications not related to rubber fenders, for sliding surfaces that do not require any energy absorption.
UHMWPE| PE 1000 Polyethylene sheet moulded size , also we can cut as customized size !
| Length(mm) | Width(mm) | Thickness(mm) |
| 6000 | 2000 | 6-300 |
| 3000 | 1500 | 6-300 |
| 4700 | 1200 | 6-300 |
| 5000 | 1300 | 6-300 |
| 4500 | 2000 | 6-300 |
| 3050 | 1220 | 6-100 |
OEM size and CNC machined UHMWPE |HDPE parts is customized
UHMWPE| PE 1000 Polyethylene sheet Techinical data sheet :
| Physical Properties | Test Method | Unit | Value |
| Specific Gravity | ASTM D792 | g/cm3 | 0.93 |
| Water Absorption | ASTM D570 | ºC | <0.01 |
| Mechanical Properties | Test Method | Unit | Value |
| Tensile Strength | ASTM D638 | MPa | 40 |
| Elongation, at break | ASTM D638 | % | 300 |
| Flexural Strength | ASTM D790 | MPa | 24 |
| Compression Strength, 10% Deformation | ASTM D695 | MPa | 21 |
| Hardness, Shore D | ASTM D2240 | - | D66 |
| Coefficient of Friction | - | - | 0.12 |
| Thermal Properties | Test Method | Unit | Value |
| Heat Deflection Temperature | ASTM D648 | ºC | 47 |
| Melting Point | ASTM D3412 | ºC | 135 |
| Continuous Service Temperature | - | ºC | 82 |
| Electrical Properties | Test Method | Unit | Value |
| Surface Resistivity | ASTM D257 | Ω-M | >1015 |
| Dielectric Constant 106Hz | ASTM D150 | 2.3 |

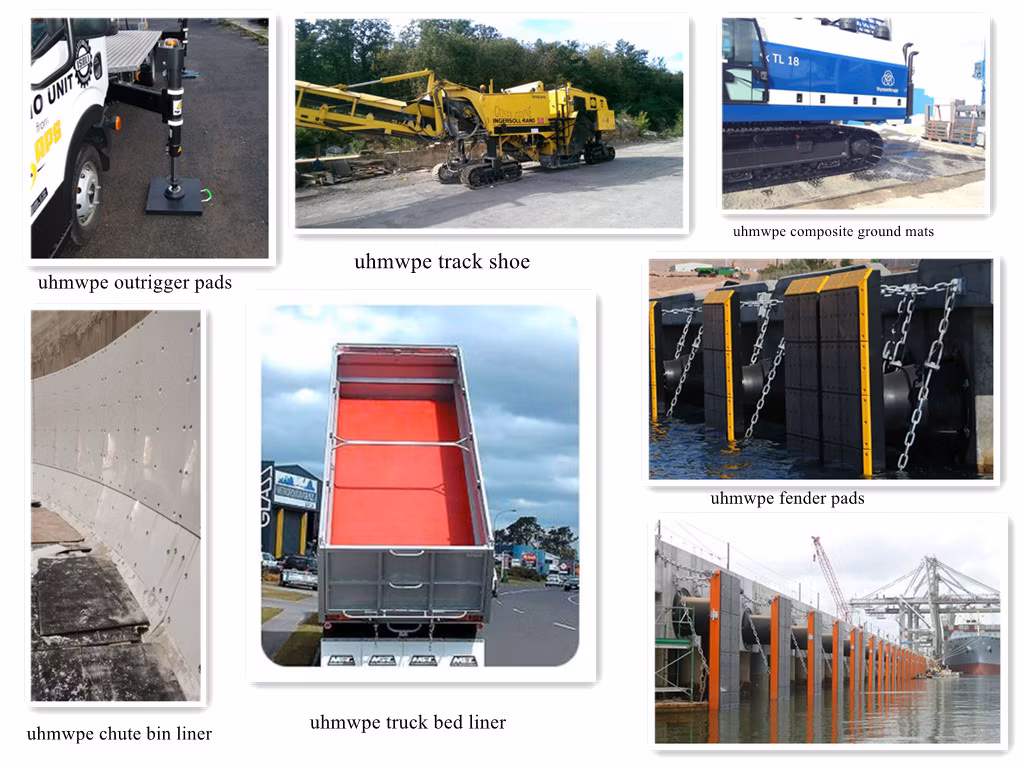

UHMWPE| PE 1000 Polyethylene sheet cutting board application :
UHMWPE| PE 1000 Polyethylene sheet Types :
- Anti-static UHMWPE Sheet
- Self-lubricating UHMWPE Sheet
- Tiver88 equaled UHMWPE Liner
- Flame-retardant UHMWPE Sheet
- Boron UHMWPE Plate
- Anti-slip UHMWPE Sheet
- Ceramic filled UHMWPE Sheet
- Glass filled UHMWPE Sheet
- Fender Grade UHMWPE Sheet
*Single colored UHMWPE Sheet
*Dural colored UHMWPE Sheet
*Rubber coated UHMWPE Sheet
UHMWPE| PE 1000 Polyethylene sheet features :
1.Excellent abrasion resistance
2.Low coefficient of friction
3.No moisture absorption
4.Corrosion resistant
5.Excellent noise abatement
6.Excellent impact strength
7.Maintains key physical properties to -200ºC
What we do ? ----Company Profile --- Abosn(DEZHOU)New Materials company ltd
Abosn® is equipped with the most advanced HDPE extruded machines , High Hydraulic pressed machine for UHMWPE (PE 1000 ) plates , also all kinds of CNC lathe machine , milling surface machine ...to process all types of UHMWPE |HDPE|PP ..sheets and parts.
Abosn® offer all colors and sizes different molecular weight UHMWPE |HDPE |PP plates and parts .Abosn® engineering plastic is widely used all industry and Medical port construction ... applications . UHMWPE|HDPE |PP all shaped plates and CNC machined is available here .
Abosn(DEZHOU)New Materials company ltd World wide customer factory visit :
Why choose us :
A professional technical
B Advanced equipement
C Direct factory manufacturer
D Customerized OEM service
E Competitive price, In stock, Fast delivery,
F Highly efficient communication and service
G long-term guranteed quality
