Steel spring insulator made of metal

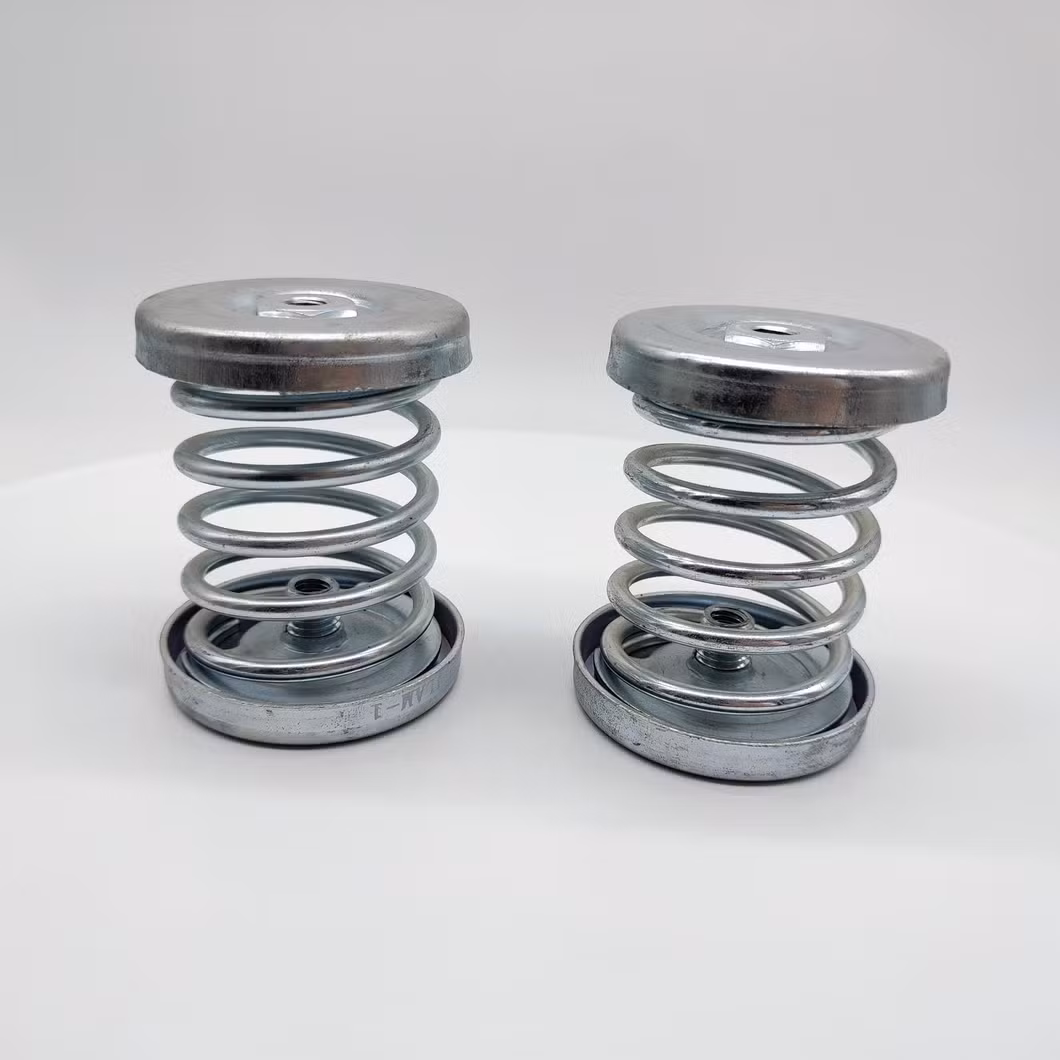

Isotop® SD steel spring vibration isolators have a natural frequency of approx. 3.2 Hz.
The isolators of the SD series consist of two spring plates with an M 10 internal thread and a cylindrical helical spring, designed according to DIN EN 10270-1: 2001.
The height is adjusted using a threaded rod M 10 with 3 nuts and 3 lock washers for level control and setting the weight distribution. Corrosion protection: optionally galvanized or cathodic dip-painted (KTL).
Steel spring isolators
- Natural frequency from 3.2 Hz
- Electro-galvanised or cathodic dip-coated (CDC) for increased corrosion protection
- Secure connection between the plate and the spring
thanks to special adhesive
- M 10 internal thread
- Suitable base plate and/or height adjustment available
- Base plate with damping element (FP/K) also isolates higher frequencies
- Simple load control thanks to open design
- Spring design conforms to DIN EN 13906-1
| Maximum load | Natural frequency at maximum load | Packaging unit | ||||
| in kg | in N | |||||
 | MSD-15 | 15 | 147 | 3.2 Hz | 50 pcs | |
| MSD-25 | 25 | 245 | 3.2 Hz | 50 pcs | ||
| MSD-50 | 50 | 490 | 3.2 Hz | 50 pcs | ||
| MSD-75 | 75 | 735 | 3.2 Hz | 50 pcs | ||
| MSD-100 | 100 | 980 | 3.2 Hz | 50 pcs | ||
| MSD-150 | 150 | 1470 | 3.2 Hz | 50 pcs | ||
| MSD-200 | 200 | 1960 | 3.2 Hz | 50 pcs | ||
| MSD-300 | 300 | 2940 | 3.4 Hz | 50 pcs | ||
| MSD-400 | 400 | 3920 | 3.4 Hz | 50 pcs | ||
| MSD-500 | 500 | 4900 | 3.4Hz | 50pcs | ||
 | Isotop SD 1 KTL | 20 | 196 | 3.2 Hz | 100 pcs. | |
| Isotop SD 2 KTL | 33 | 324 | 3.2 Hz | 100 pcs. | ||
| Isotop SD 3 KTL | 52 | 510 | 3.2 Hz | 50 pcs. | ||
| Isotop SD 4 KTL | 82 | 804 | 3.2 Hz | 50 pcs. | ||
| Isotop SD 5 KTL | 123 | 1,206 | 3.2 Hz | 50 pcs. | ||
| Isotop SD 6 KTL | 195 | 1,913 | 3.2 Hz | 50 pcs. | ||
| Isotop SD 7 KTL | 310 | 3,041 | 3.2 Hz | 50 pcs. | ||
| Isotop SD 8 KTL | 420 | 4,120 | 3.4 Hz | 100 pcs | ||
| Isotop SD 9 KTL | 525 | 5,150 | 3.4 Hz | 100 pcs | ||
 | Isotop FP/K 1 - 9 | for SD 1 to 9 | including screws1 | 50 pcs | ||
| Isotop FP/K 1 - 9 KTL | for SD 1 to 9 | including screws1 | 50 pcs | |||
 | Isotop FP 1 - 9 | for SD 1 to 9 | without screws | 50 pcs | ||
| Isotop FP 1 - 9 KTL | for SD 1 to 9 | without screws | 50 pcs | |||
 | Isotop NV 1 - 9 | M10 | for SD 1 to 9 | 50 pcs | ||
