Basic Info.
Model NO.
CPO
Connection Mode
Push-Pull Connection
Shape
Rectangle
Contact Termination Form
Screws Fixed
Type
High Temperature Electric Connector
Character
High Temperature Resistance
Production Process
Ceramic
Brand
Es
Size
4mm2, 10mm2, 16mm2
Inserts
Nickel Plated Brass
Housing
Porcelain
Colour
White
Transport Package
Standard Plastic Bag / Customised
Specification
VDE, CE, RoHS
Trademark
ES
Origin
China
HS Code
8547100000
Production Capacity
200, 000PCS/Month
Product Description
Ceramic Porcelain Terminal Blocks with VDE CE RoHS (Chinese Factory, European Warehouse)
The series is made up of 1 pole, 2 poles, 3 poles and 4 poles.
Brass insert is nickel-plated to allow installation even in environments with high-grade pollution.
Materials:
steatite----insulating case
nickel-plated brass----conductive base
galvanised steel----screws
Technical Specifications:
1. heat resistance up to 800 ºC insulating case, 350 ºC conductive base
2. 960 ºC to glow wire test
3. screw clamping with tightening torque max. 1.2Nm
4. high resistance in corrosive environments
Advantages:
1. high heat resistance
2. high mechanical strength
3. excellent chemical stability
4. water resistant material
5. high resistance to tracking currents
6. high wear and tear resistance
Related Products:

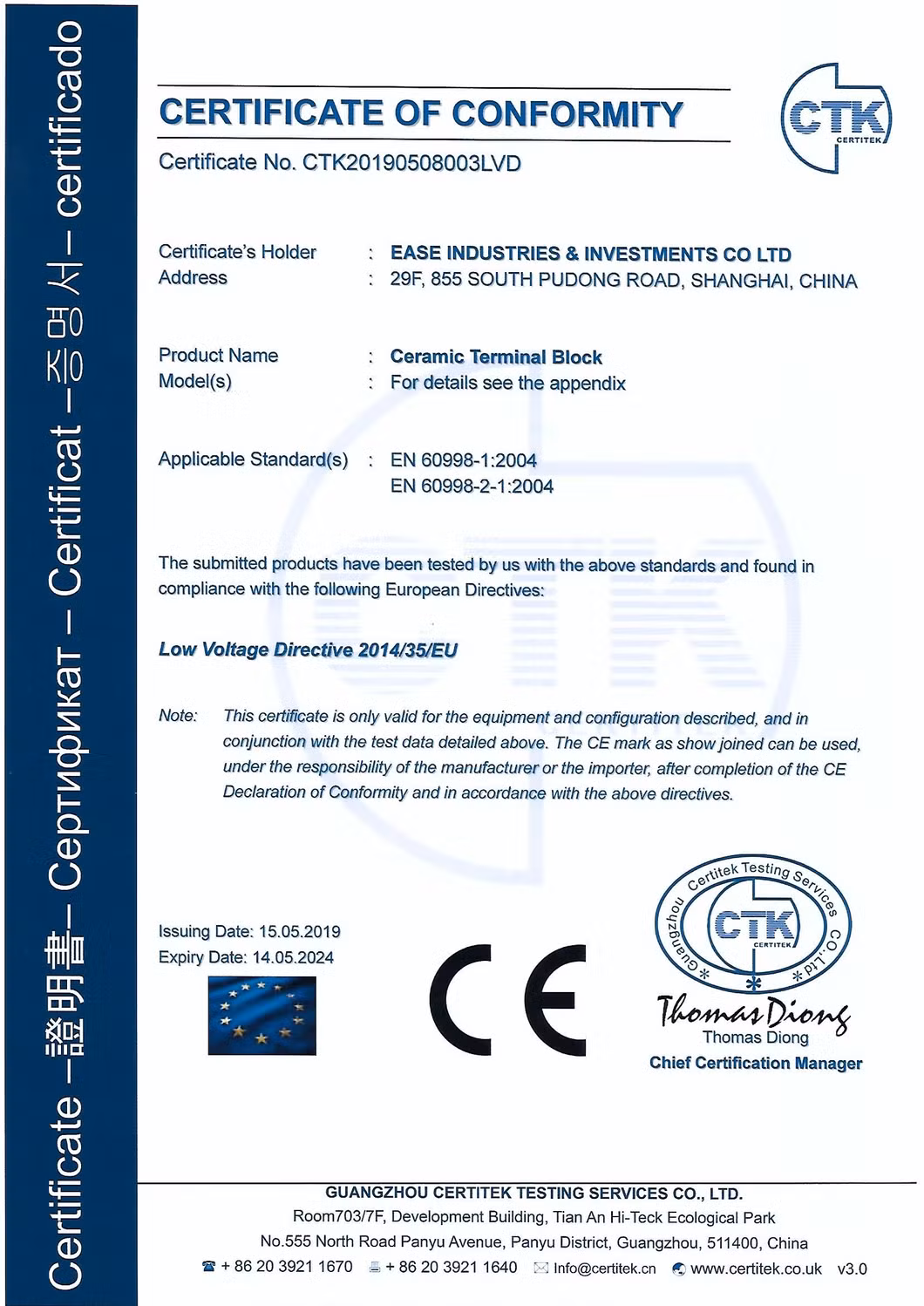

Company Certificates:
Workshop and warehouse:op and warehouse:
International exhibition:
Europe Sales & Warehouse:
China Office & Production Base:
Company Information:
If you need more information, please refer to our website easesh.en.made-in-china.com
The series is made up of 1 pole, 2 poles, 3 poles and 4 poles.
Brass insert is nickel-plated to allow installation even in environments with high-grade pollution.
Materials:
steatite----insulating case
nickel-plated brass----conductive base
galvanised steel----screws
Technical Specifications:
1. heat resistance up to 800 ºC insulating case, 350 ºC conductive base
2. 960 ºC to glow wire test
3. screw clamping with tightening torque max. 1.2Nm
4. high resistance in corrosive environments
Advantages:
1. high heat resistance
2. high mechanical strength
3. excellent chemical stability
4. water resistant material
5. high resistance to tracking currents
6. high wear and tear resistance
