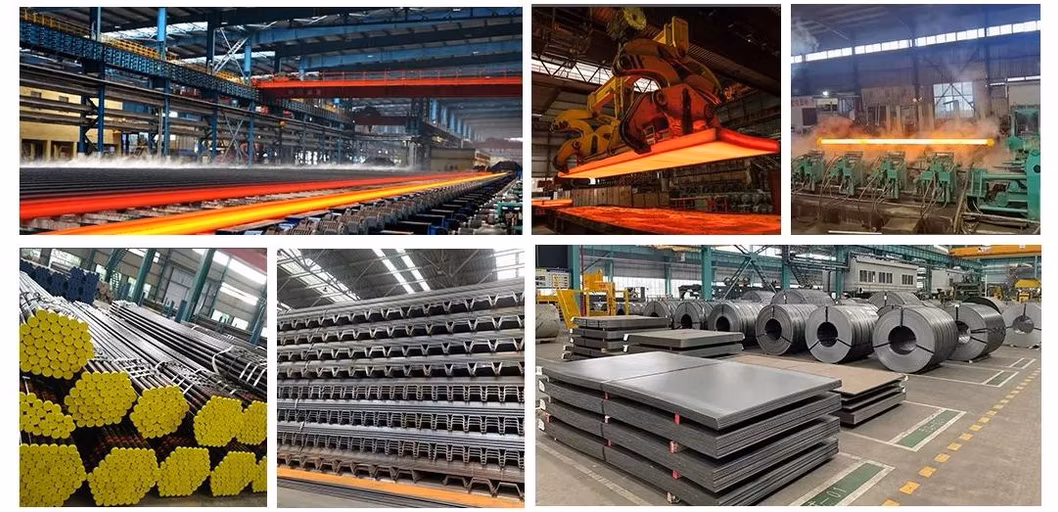

- Factory Live Shot
- Product Description
Basic Info.
Thickness
0.1mm-25mm or as Your Requirement
Key Words
Angle Bar/Angle Rod
Material Brand
Tisco, Baosteel, Posco etc
Transport Package
Wooden Pallet
Specification
20x20-200x200
Trademark
yasen
Origin
China
HS Code
7216210000
Production Capacity
5000ton/Month
Product Description
| Product | Steel Angle Bar |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Thickness | 0.8mm - 25mm |
| Width | 25mm*25mm-200mm*125mm / 50mm*37mm-400mm*104mm |
| Length | 1m - 12m , or according to your requests. |
| Shape | Equal |
| Usage | Mechanical & Manufacture, Steel strcuture, Shipbuilding, Bridging, Automobile Chassis. |
| Main market | Middle East, Africa, Asia and some Uropean country, America, Australia, etc. |
| Technique Processing | Cold Drawn, Hot Rolled, Bending, Welding |
| Sectional properties and theoretical weight of hot-rolled equilateral angle steel | ||||||||||||||||
| Size(mm) | CSA | Theoretical Weight | center | consistency | resistance…Wx | Radius of gyration | Double angle steel turning radius…iy…(cm) | |||||||||
| Wing width | wing | radius | A | y0 | Ix | MAX | MIN | ix | iu | iv | a(mm): | |||||
| b | t | R | (cm2) | kg/m | (cm) | cm4 | cm3 | cm | cm | cm | 0 | 6 | 8 | 10 | 12 | |
| 20 | 3 | 3.5 | 1.13 | 0.89 | 0.60 | 0.40 | 0.66 | 0.29 | 0.59 | 0.75 | 0.39 | 0.85 | 1.08 | 1.17 | 1.25 | 1.34 |
| 4 | 1.46 | 1.15 | 0.64 | 0.50 | 0.78 | 0.36 | 0.58 | 0.73 | 0.38 | 0.87 | 1.11 | 1.19 | 1.28 | 1.37 | ||
| 25 | 3 | 3.5 | 1.43 | 1.12 | 0.73 | 0.82 | 1.12 | 0.46 | 0.76 | 0.95 | 0.49 | 1.05 | 1.27 | 1.36 | 1.44 | 1.53 |
| 4 | 1.86 | 1.46 | 0.76 | 1.03 | 1.34 | 0.59 | 0.74 | 0.93 | 0.48 | 1.07 | 1.30 | 1.38 | 1.43 | 1.55 | ||
| 30 | 3 | 4.5 | 1.75 | 1.37 | 2.85 | 1.46 | 1.72 | 0.68 | 0.91 | 1.15 | 0.59 | 1.27 | 1.47 | 1.55 | 1.63 | 1.71 |
| 4 | 2.28 | 1.79 | 0.89 | 1.84 | 2.08 | 0.87 | 0.90 | 1.13 | 0.58 | 1.26 | 1.49 | 1.57 | 1.65 | 1.74 | ||
| 36 | 3 | 4.5 | 2.11 | 1.66 | 1.00 | 2.58 | 2.59 | 0.99 | 1.11 | 1.39 | 0.71 | 1.49 | 1.70 | 1.78 | 1.86 | 1.94 |
| 4 | 2.76 | 2.16 | 1.04 | 3.29 | 3.18 | 1.28 | 1.09 | 1.38 | 0.70 | 1.51 | 1.73 | 1.80 | 1.89 | 1.97 | ||
| 5 | 3.38 | 2.65 | 1.07 | 3.95 | 3.68 | 1.56 | 1.08 | 1.36 | 0.70 | 1.52 | 1.75 | 1.83 | 1.91 | 1.99 | ||
| 40 | 3 | 5 | 2.36 | 1.85 | 1.09 | 3.59 | 3.28 | 1.23 | 1.23 | 1.55 | 0.79 | 1.65 | 1.86 | 1.94 | 2.01 | 2.09 |
| 4 | 3.09 | 2.42 | 1.13 | 4.60 | 4.05 | 1.60 | 1.22 | 1.54 | 0.79 | 1.66 | 1.88 | 1.96 | 2.04 | 2.12 | ||
| 5 | 3.79 | 2.98 | 1.17 | 5.53 | 4.72 | 1.96 | 1.21 | 1.52 | 0.78 | 1.68 | 1.90 | 1.98 | 2.06 | 2.14 | ||
| 45 | 3 | 5 | 2.66 | 2.09 | 1.22 | 5.17 | 4.25 | 1.58 | 1.39 | 1.76 | 0.90 | 1.85 | 2.06 | 2.14 | 2.21 | 2.29 |
| 4 | 3.49 | 2.74 | 1.26 | 6.65 | 5.29 | 2.05 | 1.38 | 1.74 | 0.89 | 1.87 | 2.08 | 2.16 | 2.24 | 2.32 | ||
| 5 | 4.29 | 3.37 | 1.30 | 8.04 | 6.20 | 2.51 | 1.37 | 1.72 | 0.88 | 1.89 | 2.10 | 2.18 | 2.26 | 2.34 | ||
| 6 | 5.08 | 3.99 | 1.33 | 9.33 | 6.99 | 2.95 | 1.36 | 1.71 | 0.88 | 1.90 | 2.12 | 2.20 | 2.28 | 2.36 | ||
