Sintered Stone Bridge Saw

Hualong HLSQ-350 is anmonoblock Automatic Bridge Stone Cutting Machine with Siemens PLC controller. It offers interpolated axes, 0-90° rotating head and a tilting table, is programmable and sutable for cut slab of sintered stone, grainte, marble, quartz and other natural or engineered stones to size. Fully warranty provided.

Table Tilt: 0-85°                                                                                  Metal Tank - Optional for collecting water

TECHNICAL DATA HLSQ-450
Configuration	Diameter of saw blade	mm	Φ300 - Φ350
	Dimension of working platform	mm	3200 x 2000
	Power of main motor	kw	15
	Power of tool slide reciprocating motor	kw	1.1
	Power of crossbeam shifting motor	kw	1.5
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	1.5
	Gross power	kw	21.3
Main Performance Parameters	Max. length of horizontal cutting	mm	3200
	Max. thickness of cutting	mm	80
	Water consumption	m3/h	2
Measurement	Gross weight	kg	3000
	Dimension (L x W x H)	cm	5400x2200x2200

Main Features

1) Monoblock structure for easy transport, installations and no foundation needed.
2) Siemens, Schneider electric and other high quality accesories such as Sanch inverter are adopted.
3) 0°- 90° automtaic head rotatation .
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can tilt 0-85°, easy for slab loading.

Linear Guide

Original: China



Quality products used on crossbeam (X axis) and carling (Y axis) to gurantee perfect cutting accuracy and long lifespan.



Control system



Brand: Siemens

Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions, which offer friendly and inteligent control.

Laser Reticule Apparatus

Origin: China
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.

Electric Cabinet



Brand: Siemens, Schneider, Sanch...



Quality electrics used to ensure stable performance.

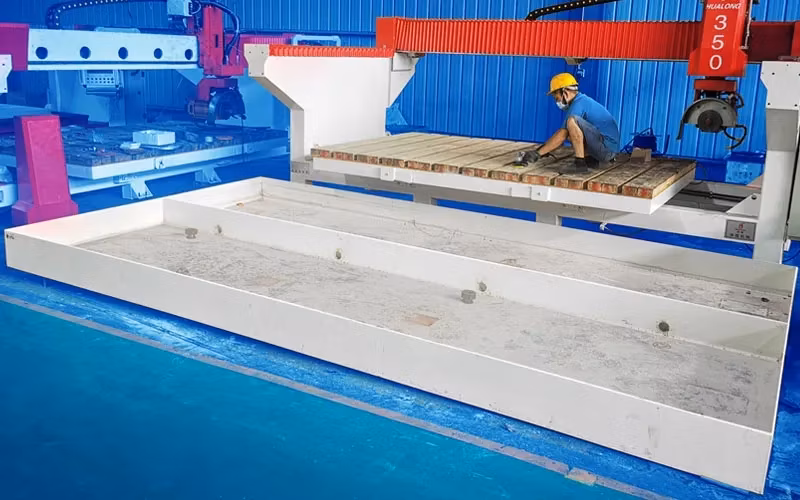

Metal Tank

Optional for collecting water for recycling

Optional Accessaries:

Remote Control

For control the movement of 3 axises conviniently.



Hydraulic Giant

For cleaning.

1) 25 years + experience professional on making stone machines.

2) Good performance and Long life service --- Our HLSQ series bridge saw was first exported to Brazil in 2012, which is still working well now.

3) The machining operation is simpler than the operation of other infrared cutting machine, automatically cut by setting parameters.

Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.

Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.

Q: What's your MOQ and delivery?
A: Our MOQ is 1 set.  We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.

Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.

Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
